Contractions

A contraction is a mapping of the form

where q is a distribution which is called the centre of the contraction and α is the magnitude of the contraction.

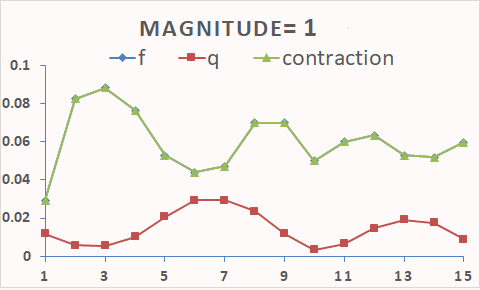

The effect of the contraction is to flatten out f so that it becomes 'more like' q. The smaller α is, the greater the effect.

• When α=1, the contraction has no effect
• When α=0, the contraction becomes q

When applied to the underlying set, a contraction might cause it to fail to be of the fundamental type originally chosen. For example, a contraction of an unimodal distribution might not be unimodal.

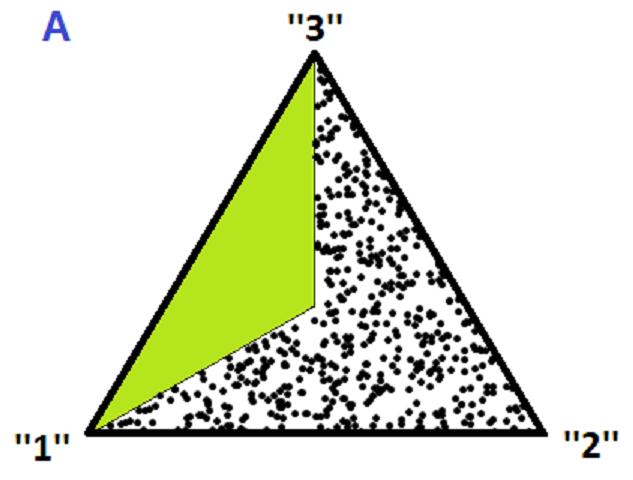

Diagram A shows S(3). The dots show M(3), ie. the unimodal distributions; the green area is the non-unimodal distributions.

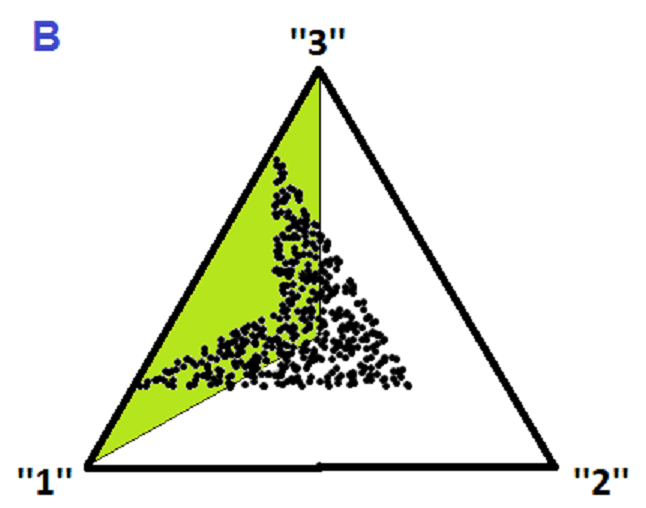

Diagram B shows the effect on M(3) of the contraction of magnitude 0.6 centred on ("1"+"3")/2. The contraction has caused about half the points which were originally in M(3) (ie. were unimodal) to move into the coloured area and so stop being unimodal.
